Overview Pumps 12/24V

HARDI-Designations:

33er
up to 60PS
Pressure bar 0,13-0,20
psi 1,88-2,9
Conveying capacity 60-80 l/h

44er
up to 100PS
bar 0,18-0,26
psi 2,60-3,77
80-100 l/h

88/99/100er
from 100PS
bar 0,28-0,34
psi 4,00-5,00
100-130 l/h

Connection options

1-

pivoted
8mm
Stutzen 1
-0
2 x M14 x 1,5
outside
unterteil-0
-1
2 x R1/4“
outside
unterteil-1
-3
2 x tube connector
fixed 8mm
unterteil-3
-5
Inlet 1/2“ UNF20
Outlet 7mm
unterteil-5
-6
2 x tube connector
fixed 10mm
unterteil-6
-7
2 x tube connector
fixed 12mm
unterteil-7
-8
2 x M14 x 1,5
inside
unterteil-8
9912
2 x BSPP
3/8“ inside
unterteil9912

Fuel Pumps 12V Topseller

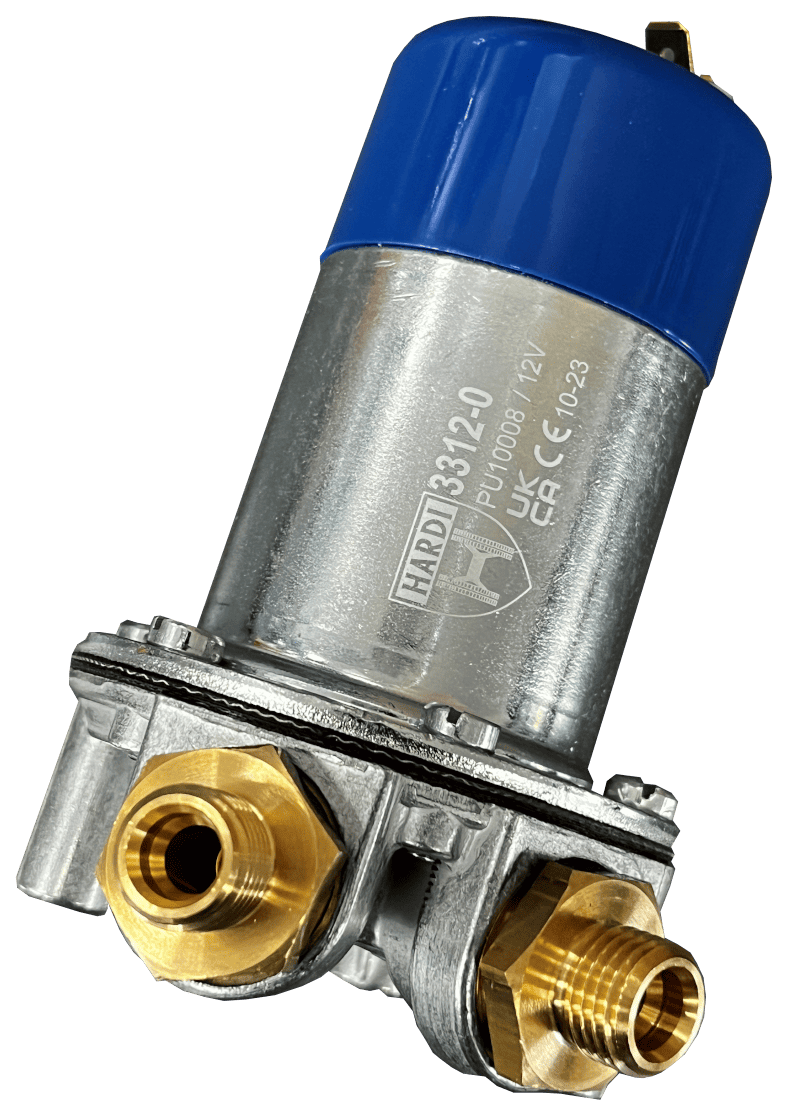

12V <60PS

Pressure bar: 0,13-0,20/psi 1,88-2,9
Conveying capacity 60-80 l/h



12V <100PS

Pressure: bar 0,18-0,26 / psi 2,60-3,77
Conveying capacity: 80-100 l/h



12V >100PS

Pressure: bar 0,28-0,34 / psi 4,00-5,00
Conveying capacity: 100-130 l/h



Fuel Pumps 24V Topseller

24V <60PS

Pressure bar: 0,13-0,20/psi 1,88-2,9
Conveying capacity 60-80 l/h



24V <100PS

Pressure: bar 0,18-0,26 / psi 2,60-3,77
Conveying capacity: 80-100 l/h

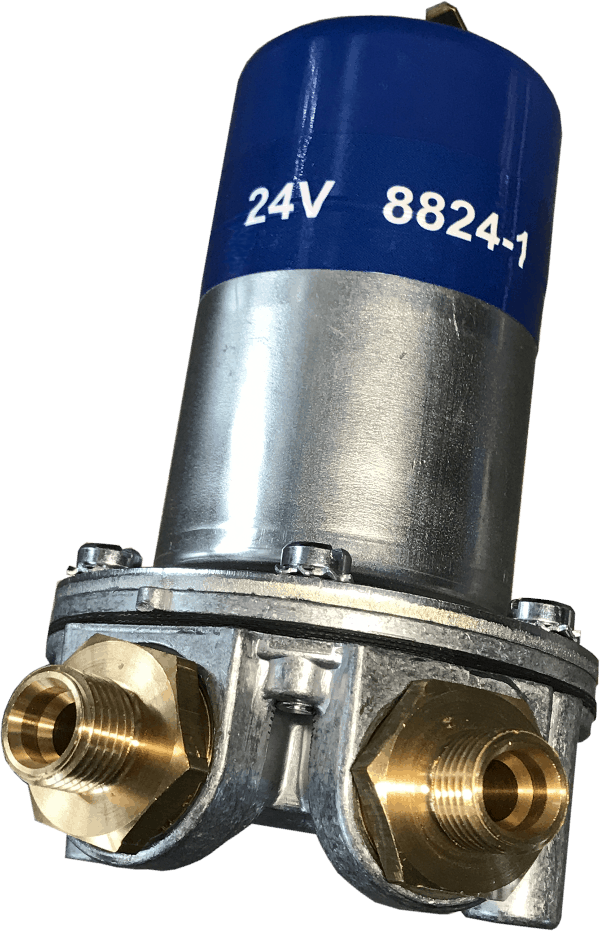

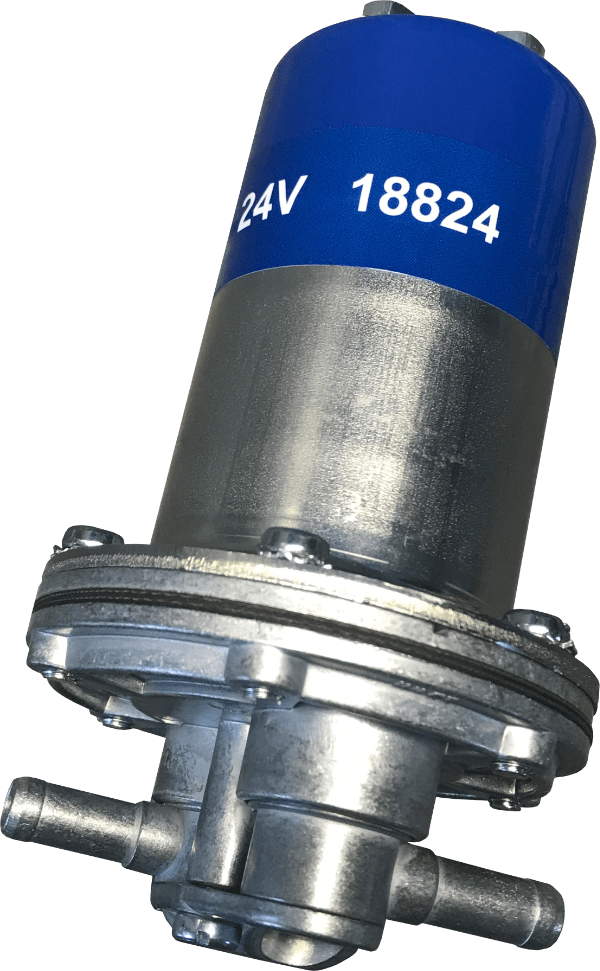

24V >100PS

Pressure: bar 0,28-0,34 / psi 4,00-5,00
Conveying capacity: 100-130 l/h
